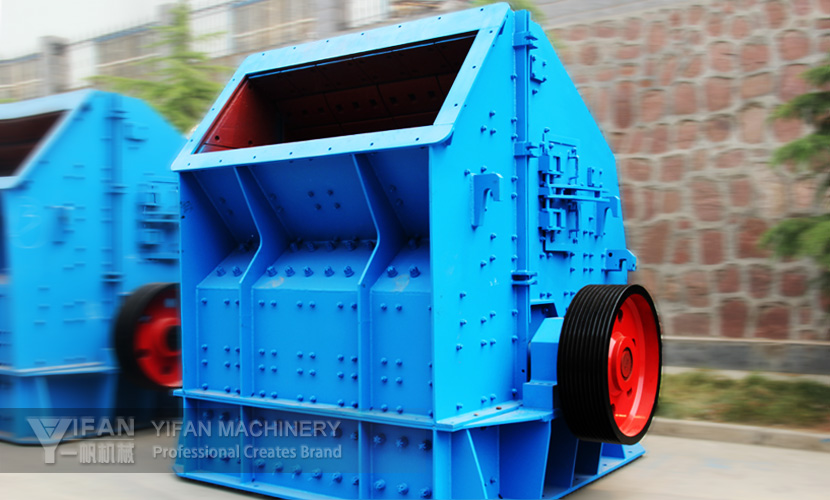

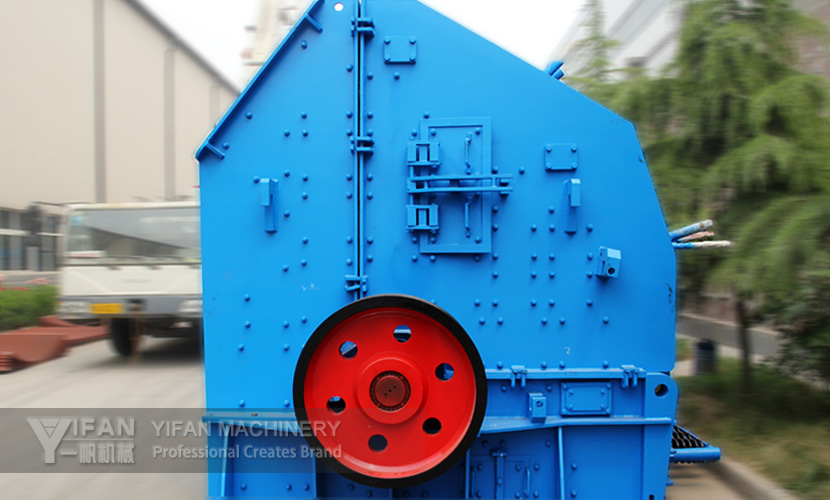

Horizontal Shaft Impactor

Horizontal Shaft Impactor

Horizontal Shaft Impactor

Type: Primary crusher Feed Size:250mm-1200mm

Capacity: 40-1200t/h

Materials: Granite, limestone, concrete, lime, plaster, limestone, etc.

Applications: Mining, metallurgy, construction, highway, railroad, water conservancy, etc.

Overview

CH series impact crusher is manufactured on the basis of advanced foreign technology and domestic applications. With the advantages of more human-oriented, simple design, reasonable structure, better cavity and large capacity, CH series impact crusher can crush all kinds of ores in primary and secondary crushing process.

Features

  • Heavy type rotor with optimized design, reasonable structure and enhancing rotational inertia can take finite element endurance analysis. It can achieve higher crushing ratio, better crushing and abrasion resistance performance.
  • Standard scale board can increase interchangeability, which will decrease spare part repertory and variety, and make replacement much easier.
  • Unique hydraulic device design is convenient for operators to open the chassis, replace accessories, and adjust the discharge gate.
  • The simple structure of impact frame and grinding frame has the advantages of easy operation, convenient maintenance and low cost.

Technical Data

Model Max Feed Size (mm) Capacity (t/h) Motor power (kw) Weight（Excluding Motor）(t)
with grinding cavity without grinding cavity
CHP4939(A) 500 90-160 110-132 14.696 13.596
CHP4955(A) 500 100-260 132-200 17.43 16.12
CHP5159(A) 600 180-300 200-250 21.2 22.12
CHP5559(A) 650 220-450 250-315 27.046 25.438
CHP5979(A) 700 250-550 400-440 36.45 34.3
CHP6379(A) 800 300-600 440-560 55.5 42.3
CHP7179(A) 1000 500-850 630 84.1 78.9
CHP7998(A) 1200 800-1200 1250 111.5 101.2
CHS4528(A) 250 40-70 37-55 11.8 10.98
CHS4539(A) 300 70-100 55-75 14.4 13.47
CHS4939(A) 350 100-180 110-132 14.696 13.596
CHS4955(A) 350 150-290 132-200 17.43 16.12
CHS5159(A) 400 180-350 200-250 21.05 22.04
CHS5559(A) 450 250-450 250-315 27.046 25.438
CHS5979(A) 500 280-550 400-440 36.7 34.6
CHS6379(A) 600 300-600 440-560 56.4 43.5
CHS7179(A) 700 500-850 630 84.1 78.9

Note : The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
