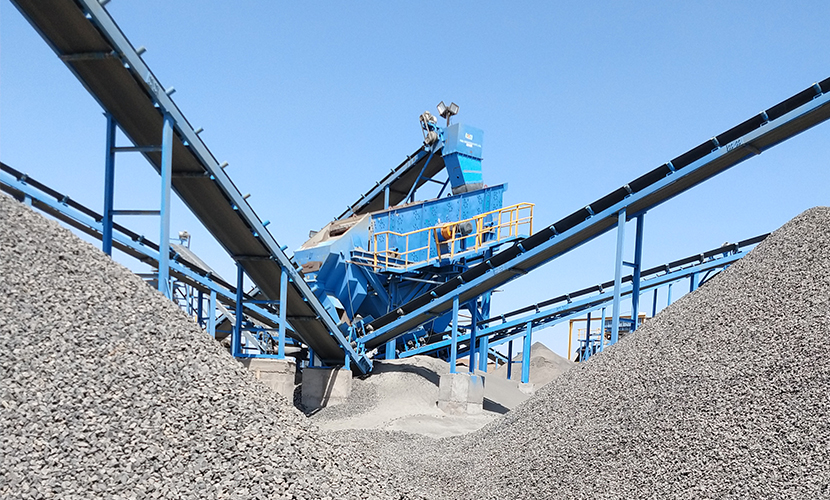

Applications: Mining, metallurgy, construction, highway, railroad, water conservancy, etc.

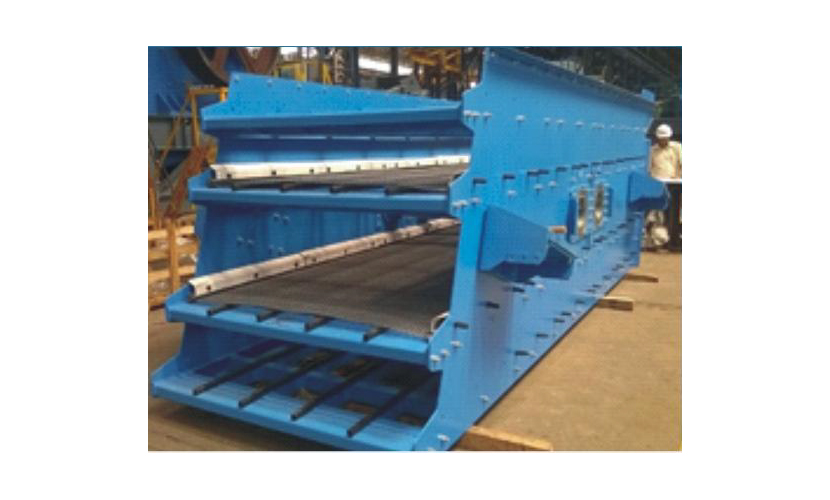

KRF Series Inclined Ripple Flow Vibrating Screens is composed by sieving box, mesh, vibration exciter and damper spring. With the advanced technology and unique structure, it is widely used in coal, metallurgy, electric power, building material and other industries.
1. Frame : The vibrating frame has been specially designed to ensure maximum ruggedness and rigidity.Simple construction allows complete dismantling.
2. Easy Coil – Spring Replacement:
3. Exclusive Motor Base:

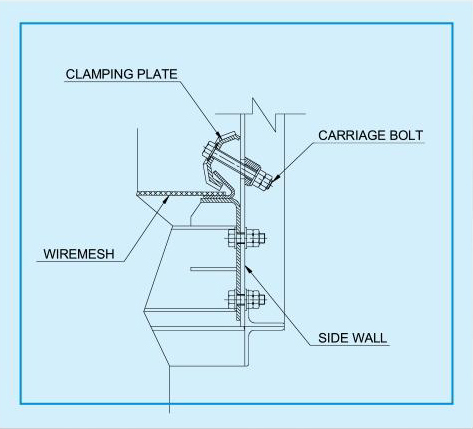

4. Screening Surfaces:

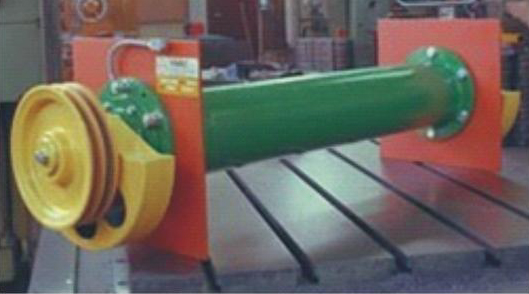

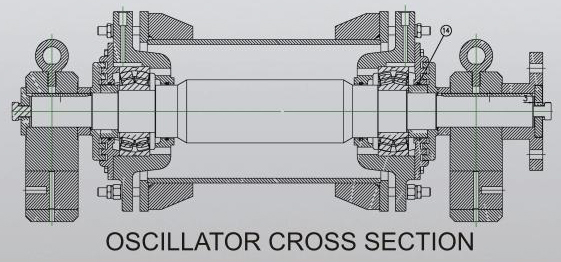

5. Vibrating Unit:
Made up of:
Flange assembly slip fit on the shaft permit easy bearing replacement
The motor makes the exciter rotating speedily through the V-belt. Besides, the great centrifugal force produced by rotating eccentric block makes the sieve box do circular motion of some amplitude, together with the impulse transmitted through sieve box on the slope surface, which makes the materials on the screen surface successively tossed forward. Thus, the classification is achieved in the process of thrown-up as materials with smaller size than the mesh is falling through.
Model | W x L (mm) | Surface (M2) | Deck (Nos) | Power (KW) | Vibrating Type | Acceleration (G Force). | App. Wt. (Kg.) |
---|---|---|---|---|---|---|---|
KRF 120/350 – 2D | 1200 x 3500 | 4 | 2 | 5.5 | CIRCULAR MOTION RIPPLE FLOW | More Than 3 and Less Than 5 | 2000 |
KRF 120/350 – 3D | 1200 x 3500 | 4 | 3 | 7.5 | 2500 | ||
KRF 150/480 – 2D | 1500 x 4800 | 7 | 2 | 9.3 | 4500 | ||
KRF 150/480 – 3D | 1500 x 4800 | 7 | 3 | 15 | 5500 | ||
KRF 150/500 - 4D | 1500 x 5000 | 7.5 | 4 | 18.5 | 5800 | ||
KRF 180/450 – 4D | 1800 x 4500 | 8 | 4 | 22 | 6500 | ||
KRF 180/500 – 2D | 1800 x 5000 | 9 | 2 | 18.5 | 6000 | ||
KRF 180/500 – 3D | 1800 x 5000 | 9 | 3 | 22 | 6500 | ||
KRF 200/600 – 2D | 2000 x 6000 | 12 | 2 | 22 | 6800 | ||
KRF 200/600 – 3D | 2000 x 6000 | 12 | 3 | 30 | 7200 | ||
KRF 200/600 – 4D | 2000 x 6000 | 12 | 4 | 30 | 8800 | ||
KRF 240/650 – 2D | 2400 x 6500 | 15 | 2 | 30 | 8200 | ||
KRF 240/650 – 3D | 2400 x 6500 | 15 | 3 | 37 | 11000 |
Note : The capacity per hour is consider onthe basis of bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding, feeding size and composition and so on
