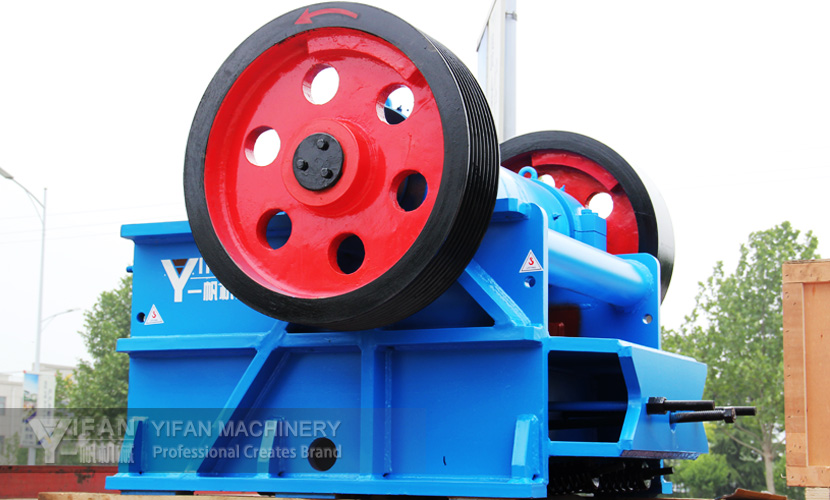

PE / PEX Series Jaw Crusher

Type: Primary crusher Feed Size:120 mm-1020 mm

Capacity: 8-800 t/h

Materials: Limestone, shale, calcium carbide, carbide slag, bluestone, basalt, river pebble, copper, ore, etc.

Applications: Stone mining, metallurgy industry, building material, highway, railway, chemical, etc.


PE/PEX series single toggle jaw crusher has the features of great crushing ratio and uniform product size. It can be used to crush materials with compressive resistance lower than 320 Mpa. PE series is used in primary crushing. PEX series is used in secondary crushing and fine crushing

Features and technology advantages

  • Simple structure, easy maintenance, stable function, low operation cost, great crushing ratio.
  • Deep crashing cavity, no unreachable corner in cavity, higher feeding capacity and productivity.
  • Great crushing ratio, homogeneous output size.
  • Discharging adjustment by shim, reliable and convenient, broad range of adjustment, more flexibility.
  • Safe and reliable lubrication system, easy change spare parts, less effort in maintenance.
  • Simple structure, reliable work, low cost in operation.
  • Less energy consumption: one machine can reduces 15%-30% energy consumption, and the whole system can reduces by a half.
  • Broad range of discharging adjustment meets variable requirement of customers.
  • Low noise, little dust.

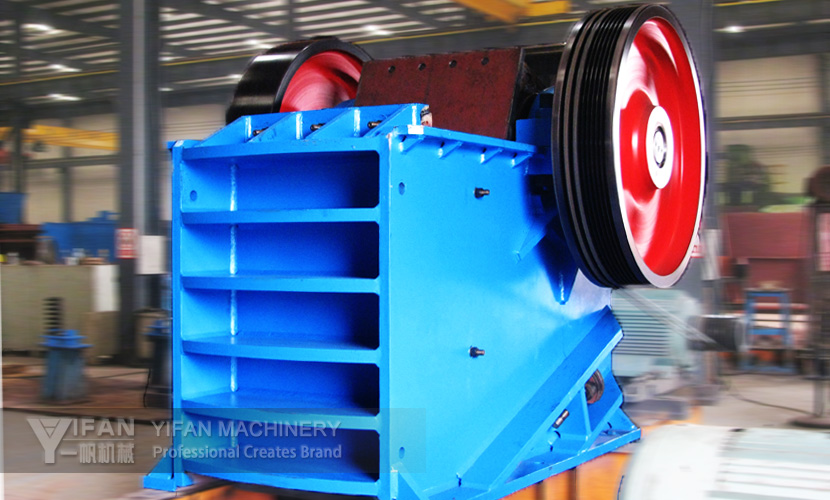

Configuration of PE/PEX Series Jaw Crushers

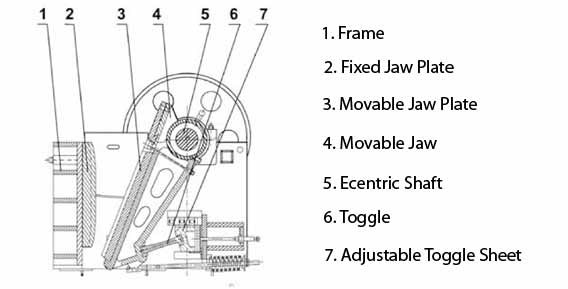

Main components of jaw crusher is consist of main frame, eccentric shaft, driving wheel, fly wheel, side protecting plate, toggle, toggle seat, gap adjustment rod, reset spring, fixed jaw plate and movable jaw plate. Toggle plays role of protection.

Working principle of PE/PEX Series Jaw Crushers

Powered by electrical motor, movable jaw is set in reciprocate movement at predetermined track through the transmission system of driving wheel, Vee-belt, and eccentric roll-driving shaft. The material is crushed in the cavity composed by fixed jaw plate, movable plate, and side protecting plate, and discharged the end product from the bottom discharge opening.

This series jaw crusher adopts curve-movement compression way to crush the material. Electric motor drives belt and belt wheel to set the movable plate in moving up and down through eccentric shaft. When the movable jaw rises, the angle formed by toggle and movable plate will be wider, and the jaw plate will be pushed approaching the fixed plate. In this way, the materials are crushed through compressing, grinding, and abrading. When the movable plate descends, the angle formed by toggle and movable plate will became narrower. Pulled by rod and spring, the movable plate will move apart from toggle, so the crushed materials can be discharged from the bottom of the crushing cavity. Consecutive movement of motor drives the movable plate in circular crushing and discharge to realize large-quantity production.

Technical Data

Model Size of Feed Opening (mm) Max Feed edge (mm) Discharge Range Opening (㎜) Capacity (t/h) Motor power (kw) Weight (t)
PE-400×600 400×600 340 40-100 16-64 30 6.1
PE-500×750 500×750 425 50-100 40-96 55 10.5
PE-600×900 600×900 500 65-180 48-136 55-75 14.8
PE-750×1060 750×1060 630 80-180 115-240 90-110 28
PE-870×1060 870×1060 750 170-270 232-376 90-110 28.45
PE-900×1200 900×1200 780 100-200 160-384 110-132 45.2
PE-1000×1200 1000×1200 850 200-280 304-440 110-132 45.7
PE-1200×1500 1200×1500 1020 150-300 400-800 200 89
PE-150×750 150×750 120 10-40 8-26 15 2.53
PE-250×1000 250×1000 210 25-60 16-48 30-37 6.5
PE-250×1200 250×1200 210 25-60 21-56 37 7.7
PE-300×1300 300×1300 250 20-90 21-85 75 11.4

Note : The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
